Gas purification system of inert gases, nitrogen / argon,

for further purification and removal of oxygen and moisture from Gloveboxes,

H2O <1 ppm; O2 <1ppm, all components in Stainless Steel

gas connections: KF 40 in stainless steel to the glovebox,

connection for Oxygen and Moisture analyzer,

circulation fan, side channel blowers in gas-tight encapsulated Housing,

controlled by frequency converters,

PLC control with touch-screen display,

pressure control of the glove box,

control 2 locks (automated gate cycles),

driving of the vacuum pump,

automatic regeneration,

building size: (lxWxH) 550 x 500 x 850 mm,

catalyst filling: about 3 L Cu catalyst, about 3 L molecular sieve for drying,

voltage: 230 V, 50 Hz,

protection : IP 22,

expandable with active carbon filter, cooling and regeneration gas generator

Double-purifier gas purification system, 24-hour.

Gas purification system of inert gases, nitrogen / argon,

for further purification and removal of oxygen and moisture from Gloveboxes,

H2O <1 ppm; O2 <1ppm, all components in Stainless Steel

gas connections: KF 40 in stainless steel to the glovebox,

connection for Oxygen and Moisture analyzer,

circulation fan, side channel blowers in gas-tight encapsulated Housing,

controlled by frequency converters,

PLC control with touch-screen display,

pressure control of the glove box,

control 2 locks (automated gate cycles),

driving of the vacuum pump,

automatic regeneration,

building size: (lxWxH) 550 x 500 x 850 mm,

both catalyst filling: about 3 L Cu catalyst, about 3 L molecular sieve for drying,

voltage: 230 V, 50 Hz,

protection : IP 22,

expandable with active carbon filter, cooling and regeneration gas generator

rod shape
Diameter about 3 mm length 3-10mm
Density [kg / m3] 650
Water absorption [wt .-% 25]

Delivery form tablets 5 X 3 mm

Density 1.05 kg / L

composition 42 wt% CuO; 47wt% ZnO;
Al2O3 10 wt%

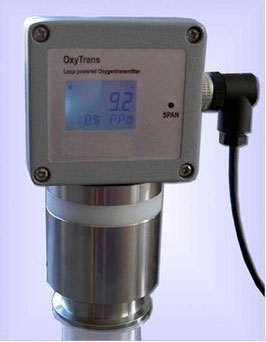

Oygen Analyzer with power supply and connection flange KF 40
Concentration measurement ranges 0-1000 ppm, or 0-25%
Actual value display: LCD display on the analyzer
Oxygen Analyzer: Electrochemical sensor
Response time: T99 <5sec 100-1000 ppm

Analyzer with power supply and

connection flange KF 40
Concentration measurement ranges 0-3000 ppm,
or dew point -100 to + 20 ° C
Actual value display: LCD Display
