Glovebox Gloves / per pair

Butyl gloves size 9 ¾,
Thickness 0.4 mm,
incl. O-rings for fastening,
Cuffs diameter 200,
ambidextrous.



Glovebox Gloves / per pair

177,95 €

  • 0,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

Glove rings / per piece

Glove Ports out of POM,
Inner opening 200mm,
Fron cutout 273mm Ø



Glove rings / piece

148,45 €

  • 4,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

Molecular Sieve 13X for Glovebox Purification

rod shape
Diameter about 3 mm length 3-10mm
Density [kg / m3] 650
Water absorption [wt .-% 25]



Molecular Sieve 13X

23,00 €

1,00 € / kg
  • 3,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

Catalyst for oxygen removal

Delivery form tablets 5 X 3 mm

Density 1.05 kg / L

composition 42 wt% CuO; 47wt% ZnO;
Al2O3 10 wt%



Catalyst for oxygen removal

78,00 €

1,00 € / kg
  • 3,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

Pressure Relief Valve

Silicone oil-filled pressure relief valve,
Opening pressure about 3 mbar,
Blow-off 25 NL / min,
at a differential pressure of 5 mbar,
Connection KF40

Pressure Relief Valve

553,00 €

  • 3,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

Oxygen Analyzer

Oygen Analyzer with power supply and connection flange KF 40
Concentration measurement ranges 0-1000 ppm, or 0-25%
Actual value display: LCD display on the analyzer
Oxygen Analyzer: Electrochemical sensor
Response time: T99 <5sec 100-1000 ppm













Oxygen Analyzer

2.350,00 €

  • 3,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

Humidity Analyzer





Analyzer with power supply and

connection flange KF 40
Concentration measurement ranges 0-3000 ppm,
or dew point -100 to + 20 ° C
Actual value display: LCD Display



Humidity Analyzer

1.988,00 €

  • 3,5 kg
  • verfügbar
  • 1 - 3 Tage Lieferzeit1

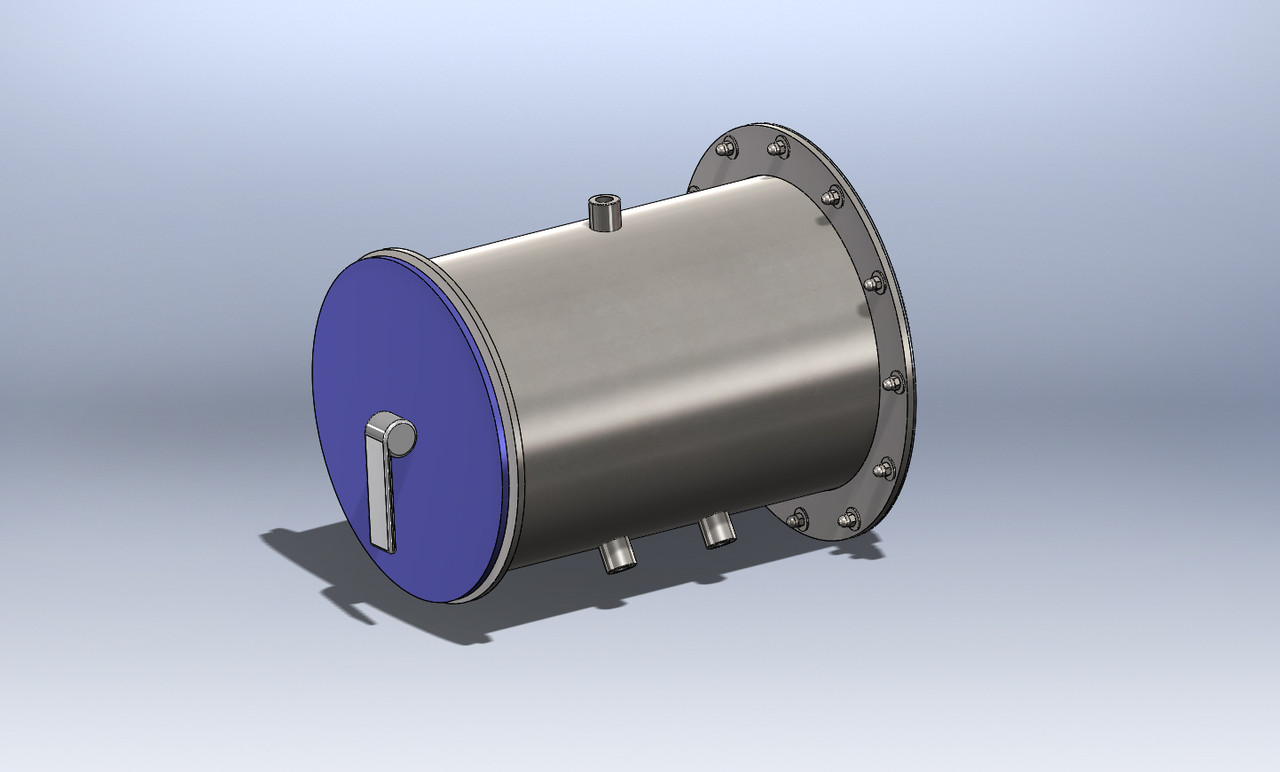

Lock diameter 150mm length 300mm

Glovebox Lock in Stainless Steel
evacuable and vacuum-tight,
2 hinged lid with horizontal / vertical mechanism,
vacuum gauge,
pullout tray made of stainless steel,
2 ball valves to evacuate / purge,
Alternative lengths and performances on request.

Lock diameter 150mm length 300mm 2 hinged lid with horizontal / vertical or mechanism,

1.911,00 €

  • 15 kg
  • verfügbar
  • 10-14 Tage Lieferzeit1

Lock diameter 150mm Länge 300mm

Glovebox Lock

evacuable and vacuum-tight,
2 removable hinged cover,

vacuum gauge,
pullout tray made of stainless steel,
2 ball valves to evacuate / purge,
Alternative lengths and performances on request.





Lock diameter 150mm length 300mm, 2 removable hinged cover

1.299,00 €

  • 15 kg
  • verfügbar
  • 10-14 Tage Lieferzeit1

Lock diameter 200mm length 300mm

glovebox lock
evacuable and vacuum-tight,
2 hinged lid with horizontal / vertical mechanism,
vacuum gauge,
pullout tray made of stainless steel,
2 ball valves to evacuate / purge,
Alternative lengths and performances on request.

Lock diameter 200mm length 300mm 2 hinged lid with horizontal / vertical or mechanism,

2.154,00 €

  • 15 kg
  • verfügbar
  • 10-14 Tage Lieferzeit1

Lock diameter 200mm length 300mm

glovebox lock
evacuable and vacuum-tight,
2 removable hinged cover,

vacuum gauge,
pullout tray made of stainless steel,
2 ball valves to evacuate / purge,
Alternative lengths and performances on request.



Lock diameter 200mm length 300mm, 2 removable hinged cover

1.611,00 €

  • 15 kg
  • verfügbar
  • 10-14 Tage Lieferzeit1

Lock diameter 400mm length 600mm

glovebox lock
evacuable and vacuum-tight,
2 hinged cover with vertical mechanism,

vacuum gauge,
pullout tray made of stainless steel,
2 ball valves to evacuate / purge,
Alternative lengths and performances on request.







Lock diameter 400mm length 600mm

3.316,00 €

  • 65 kg
  • verfügbar
  • 10-14 Tage Lieferzeit1

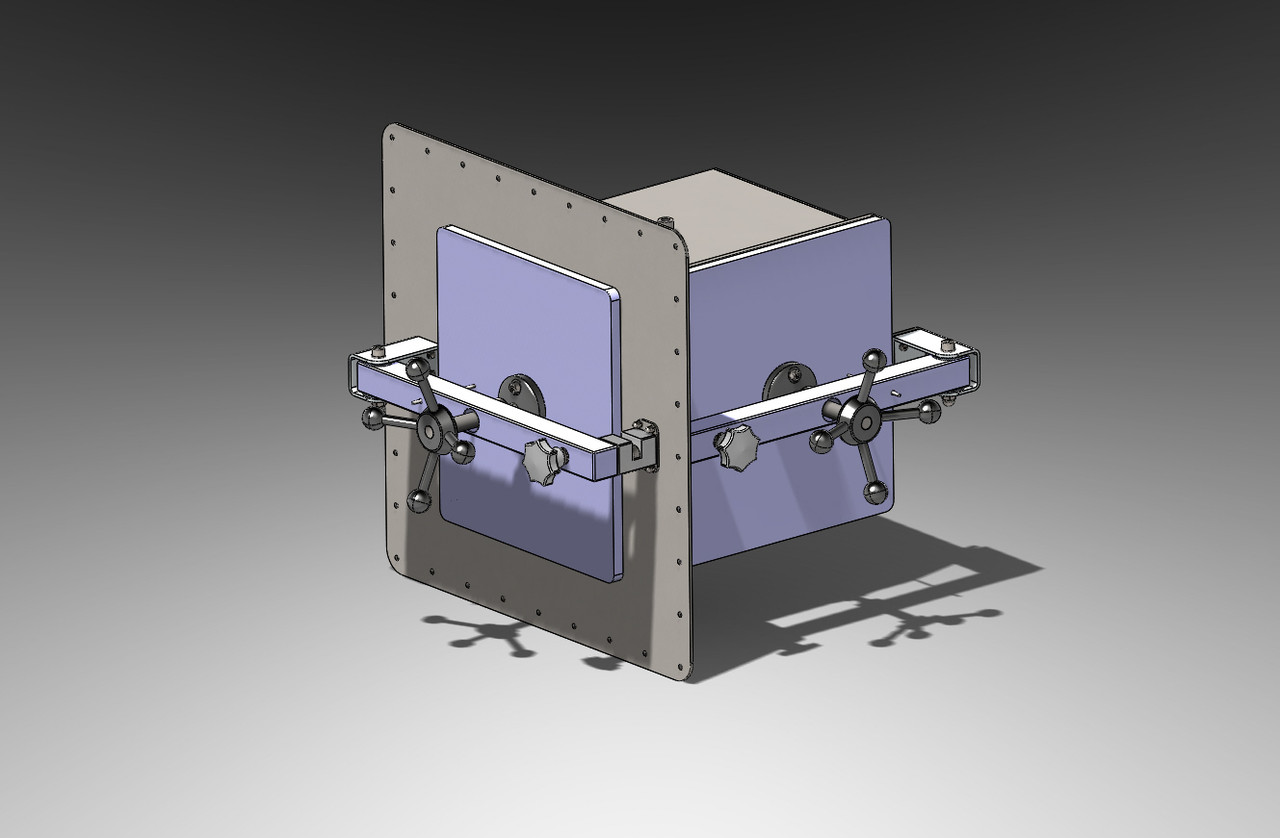

Rectangular-lock with opening forward

glovebox lock
evacuable
and vacuum-tight,
2 hinged cover with horizontal mechanism,

vacuum gauge,
pullout tray made of stainless steel,
2 ball valves to evacuate / purge,
Alternative lengths and performances on request.





Rectangular-lock with opening forward

2.959,00 €

  • 65 kg
  • verfügbar
  • 30-40 Tage Lieferzeit1

Gas Purification for Gloveboxes

Gas purification system of inert gases, nitrogen / argon,

for further purification and removal of oxygen and moisture from Gloveboxes,

H2O <1 ppm; O2 <1ppm, all components in Stainless Steel

gas connections: KF 40 in stainless steel to the glovebox,

connection for Oxygen and Moisture analyzer,

circulation fan, side channel blowers in gas-tight encapsulated Housing,

controlled by frequency converters,

PLC control with touch-screen display,

pressure control of the glove box,

control 2 locks (automated gate cycles),

driving of the vacuum pump,

automatic regeneration,

building size: (lxWxH) 550 x 500 x 850 mm,

catalyst filling: about 3 L Cu catalyst, about 3 L molecular sieve for drying,

voltage: 230 V, 50 Hz,

protection : IP 22,

expandable with active carbon filter, cooling and regeneration gas generator

Gas Purification for Gloveboxes

6.754,00 €

  • 65 kg
  • verfügbar
  • 30-40 Tage Lieferzeit1
